1.12. Payout Form

Introduction

Payout-form is a type of transaction which results in funds transfer from Connecting Party banking account to customer (receiver) banking account or digital wallet. Payout-form transaction in most cases is used for bank account funding. Unlike Server-to-Server Payout integration, in which Connecting Party sends receiver account in initial request, Payout Form integration allows the receiver to submit the banking account credentials on the form hosted on Doc2.0 side.

See terms definitions in Glossary.

  1. Receiver fill out a payout form and sends data;

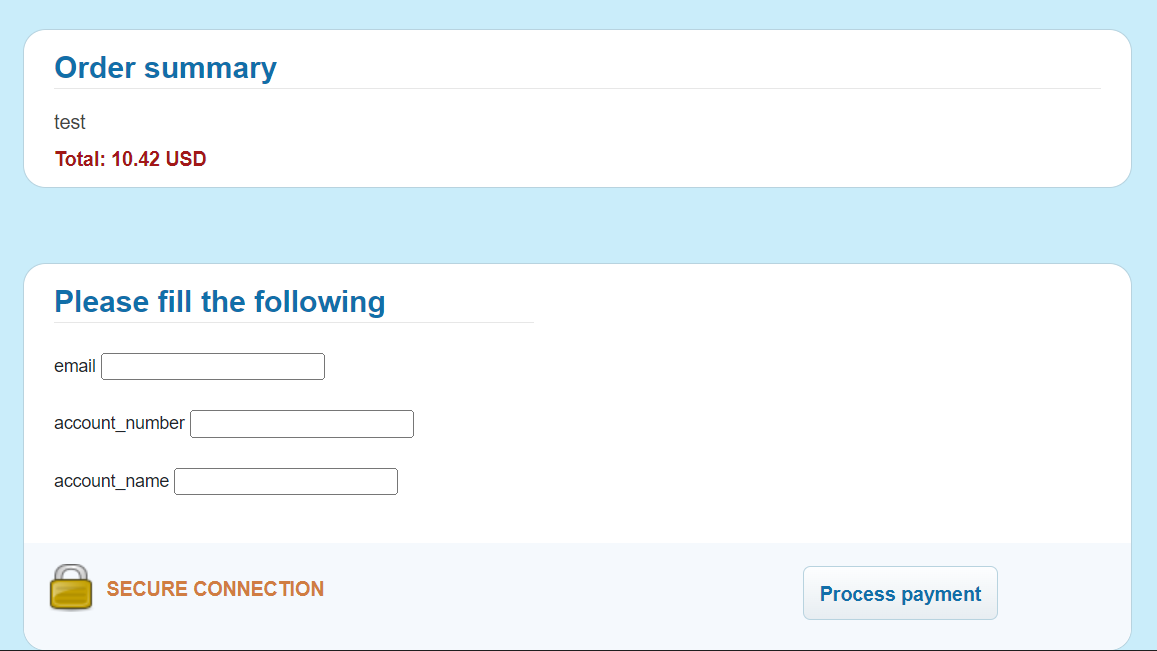

Payment Form

  1. Contextual data is gathered by Doc2.0 to process the transaction;

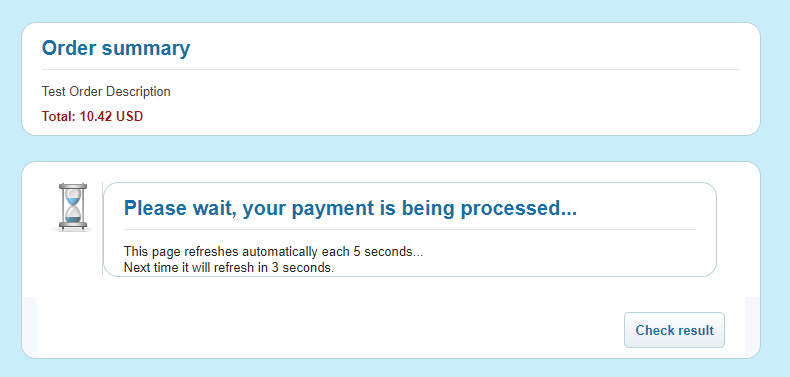

Wait Form

  1. Receiver’s browser gets redirected to the Connecting Party website to the resultant page.

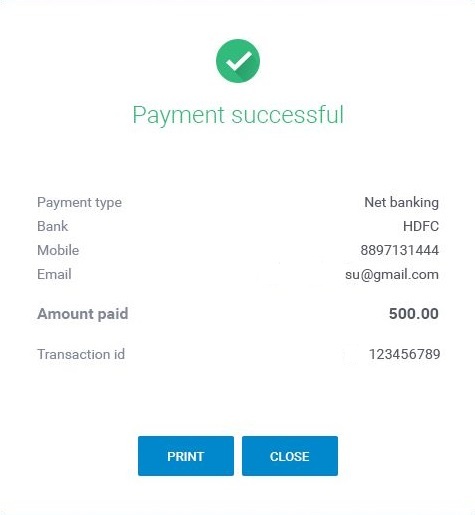

Finish Form

Payout Form Flow

participant Receiver as R participant "Connecting Party" as Cp autonumber group optional R -> Cp : Checkout activate Cp end == Payout form request == Cp -> Doc2.0: /api/v4/payout-form/ activate Doc2.0 Doc2.0 --> Cp: Order ID\nredirect-url deactivate Doc2.0 Cp --> R : Redirect to Payout Form\nredirect-url deactivate Cp activate R R -> Doc2.0 : GET redirect-url deactivate R activate Doc2.0 Doc2.0 --> R : Payout Form deactivate Doc2.0 activate R R -> Doc2.0 : Submit Form deactivate R activate Doc2.0 Doc2.0 --> Doc2.0 : Process payout == Final redirect of Receiver == Doc2.0 --> R : Connecting Party website redirect_url activate R R -> Cp : POST status,Order ID deactivate R activate Cp group Get Final Status == Receive Connecting Party Callback == Cp <- Doc2.0 : Callback with Final Status Doc2.0 <-- Cp: HTTP 200 deactivate Doc2.0 == Order Status request == Cp -> Doc2.0: Get status by Order ID\napi/v2/status activate Doc2.0 Doc2.0 --> Cp : Response\nstatus,order-stage deactivate Doc2.0 end group Optional Cp --> R: Show result deactivate Cp end

(1) Payout-form can be initiated by Connecting Party based on internal business model or Receiver’s request.
(2) To implement payout-form see /api/v2/payout-form.
(9) To implement final redirect see Final Redirect.
(11) To implement callback with final status handling see Connecting Party Callback.
(13) To implement order status request see /api/v2/status/. Status should be requested multiple times with 3-5 seconds interval until final status will be received in response.
(15) Final Status can be sent by Connecting Party based on internal business model or by Receiver’s request.
